Managing projects

A project is a self-contained folder of plain files. The Manager — the dashboard at the origin root — is where you create projects, register ones already on disk, start and stop them, and move them between machines.

What's in a project folder

Everything the runtime needs is on disk, in formats you can read and diff. That's what makes a project portable and Git-friendly.

The backend creates any missing folder on startup, and never overwrites this tree on upgrade — it is your state, not the product's.

The Manager dashboard

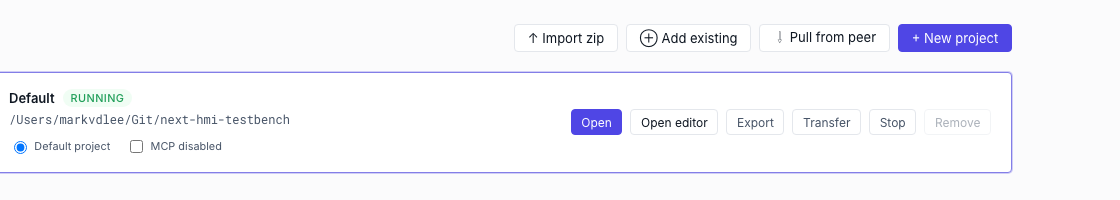

Browse to the origin root (http://localhost:8000 by default) and sign in with the device-admin password. The dashboard lists every project registered on this installation, one row each, showing its name, its id, its folder, and its status.

The id is the project's address: it is what appears in /runtime/<id>/ and /editor/<id>/, and in the instance log folder. It is derived from the name when the project is created, and it stays put afterwards unless you change it deliberately — see Rename below.

Ids ignore upper and lower case: line3 and LINE3 count as the same id, because on Windows and macOS they would share one folder. A new project whose name gives an id that is already taken gets a free one instead (LINE3-2), and an import, a push or a pull that would add a second one is refused. An installation that already holds two such ids keeps working, and the log warns about them at startup — rename one of them.

Each row shows a picture of that project's main page as it looked the last time the project was saved in the editor. A project that has never been saved shows a plain placeholder instead. The picture is stored on this installation only — it never travels with an export, a zip, or a transfer to another manager.

Each row carries the actions for that project:

The set of running projects is remembered, so a restart brings the same ones back up. Several projects can run side by side — starting one does not stop another.

A project saved by an older build — or by one that predates the file-format stamp — has to be upgraded before it opens, so Start asks first instead of starting right away. Confirming zips the whole project into its .backups/ folder before changing anything, and a one-time notice on the Projects page names what changed and where that backup landed. Declining leaves the project untouched. A project saved by a newer build shows Requires update in place of Start, naming the version it needs — update the application to that version or later. The file format only changes in a release whose major or minor number moves, so a patch update (1.0.1 → 1.0.2) never makes a project unopenable elsewhere.

Which release writes which format, and which releases open a project it saved:

A project's format is in its config.json: project.formatVersion, with project.minAppVersion, the oldest release that opens it.

How to create a project

Three ways in, all from the dashboard toolbar. Each adds a row to the runtime-home manifest — the files live wherever you point them.

1. New project — pick a template first. Click + New project. New project first asks what to start from. Empty project gives you one blank page. NEXT BREW example gives you a working demo machine — three pages plus a Dialogs folder (an about dialog, a sign-in dialog and a five-page guided brew wizard), a static datasource, alarms, recipes, two themes and two languages — which is the fastest way to see how the pieces fit together before building your own. Its onHmiLoaded global event writes starting values into its datasource on load, so if you repoint it at a real server, look at that event first.



   Enter a Project name and a Parent folder (type it or Browse…); the modal previews the exact folder it will create. Confirm and NEXT HMI copies the chosen template into place and registers it.

2. Add existing — register a folder on disk. Click ⊕ Add existing and give the Project folder path, e.g. /opt/hmi/line-a. The folder must already hold a config.json with a project block. Use this after cloning a project from Git or copying a folder onto the machine. The project is registered but not started.

3. Import zip — unpack a shared build. Click ↑ Import zip, choose the Zip file and a Destination folder. See Download & upload below.

A project created or imported this way is never made the default automatically — that stays an explicit choice.

Download & upload a project

The zip is the hand-off format: one file that carries the whole project, including its identity, so the other end registers it as the same project rather than a copy.

Download (export). Export on the project's row streams the folder out as <name>.nexthmi.zip. The compiled custom-widget cache (widget-build/) is skipped — it is regenerated on the far side — and so are the historian's local database files (*.db, *.sqlite, and their journals), the pre-upgrade zips in .backups/, and the whole certs/ folder, all of which are installation-local. certs/ holds an OPC-UA private key, which is never handed to anyone else; the receiver generates its own pair on first connect, and trusts the server certificate again (or re-uploads it) — see Trust the server certificate. Historian configuration does travel, so the receiver knows what to log. Symlinks are never followed into the archive.

Upload (import). ↑ Import zip takes the Zip file and a Destination folder, unpacks it into a new project folder, and registers it. The archive's files are checked on the way in: path traversal and absolute paths are rejected, as is any file name with a ., .. or empty folder in it, an archive holding a symlink is refused, and the total is capped by NEXTHMI_MAX_PROJECT_ZIP_MB (500 MB by default) so an oversize archive is refused before any bytes reach disk. That does not make the project's content safe to run.

A project can contain code. Code means its custom widgets, any JavaScript file in its external-libraries/ folder, and the entries of its external-modules.json import map. When the zip carries any of it, Import stops and the dialog says what it found — for example This project contains code: 2 custom widgets, 1 external library. — and lists each item; tick I trust the source of this project and want to run its code and click Import again to go ahead. That code runs in the browser of everyone who opens the project, with the same access as this dashboard, and custom widgets are built on this device when the project starts — so only import projects from a source you trust. A widget can only build in files from the project's custom-widgets/ and external-libraries/ folders, so it cannot pick up other files on this device, but nothing limits what its code does once it runs in a browser. The same holds for a project you pull from or receive from another device.

An archive has to actually hold a project: one carrying a config.json metadata block but no users.json is refused on the way in, rather than registering an entry that then refuses to start. Exporting such a project is still allowed, so a damaged one can be carried somewhere else and repaired.

Because the id travels with the archive, importing a project that is already registered on this installation is refused with a conflict — before the dialog asks about any code in it. Remove the existing entry first, or import onto a different machine. When the archive's id differs from a registered one only in upper and lower case — an archive of LINE3 beside line3 — the dialog names the existing project and offers a free id: click Use LINE3-2 instead to import the archive under that id.

Push & pull between devices

Transfer (on a project row) pushes that project to another manager on the LAN; ⇩ Pull from peer (in the toolbar) fetches one the other way. Both use the same packing code path as the zip, over the wire. The editor's top bar carries the same Transfer button for the project you have open — save your changes first, since only what is on disk travels.

Pairing takes three steps — Verify device → Sign in → Send (Fetch when pulling). The dialog starts on HTTPS, port 8443; picking a discovered device fills in its own protocol and port. First compare the other device's certificate fingerprint with the SHA-256 under Settings › HTTPS on that device; only then type its device-admin password. After that a peer token authenticates the transfer; it expires after 90 days without use, and the other device can revoke it under Settings › Tokens. Tick Remember this device (off by default) to keep it, so the next transfer needs no password; Forget pinned certificate and verify again drops it along with the pin. Discovery is by mDNS, and a peer can always be entered manually as host:port — a peer found both ways is offered once, not twice. The full trust model and the HTTPS certificate pinning are in Installing and running.

Pulling a project that contains code. Custom widgets, external libraries and import-map entries are code (see Download & upload a project above). When the source says the project has any, the dialog names it — for example This project contains code: 2 custom widgets, 1 external library., then each item — and asks you to tick I trust the source of this project and want to run its code; it asks too when the source does not say. The manager checks the downloaded project itself before installing it, and refuses the pull without that tick.

When the far side already has that project. The dialog checks before it sends, so a clash on the project's id, its destination folder, or both is named up front rather than surfacing as a failure. An id that differs only in upper and lower case is a clash too, but the far side is what spots it: the transfer fails with A project or folder of that name already exists on the target. Project ids ignore upper and lower case. and the same choices open. Pick how to resolve it:

Replacing keeps the users on the far side by default: the accounts, passwords and languages operators set there stay, and groups and settings come from your project. Untick Keep the users on the destination to send your accounts instead. See Manage users from the runtime.

When it fails anyway. The dialog says what went wrong and what to do about it, instead of printing a raw error: a wrong device-admin password (the peer's, not this manager's), a pairing lockout with the countdown to wait out, a host name that didn't resolve, an address outside the trusted LAN, a port with nothing listening, a failed TLS handshake, a peer certificate that no longer matches the one you confirmed when pairing, or a peer that no longer accepts this device because the pairing was revoked or expired — Pair again then asks for its device-admin password. Progress is named the same way as it runs — packing, uploading, extracting, backing up, installing, registering, starting.

Move, repair, and remove

• Moved the folder? The row goes to a missing status and grows a Locate… button — the one action still available, since every other one needs the folder that is gone. Give it the new path and the entry is re-pointed. The destination's config.json must carry the same project id, so a typo can't silently attach the entry to an unrelated tree.
• Rename changes the display name, the id, or both — stop the project first. The name is cosmetic. The id is the address: every /runtime/<id>/ or /editor/<id>/ bookmark pointing at the old one breaks, and any client using the old URL has to be updated. Everything on this installation follows along automatically — the manifest entry, the project's own config.json, the default-project choice and the instance logs. The folder on disk keeps its path; move it with Locate… if you want that renamed too. An id must start with a letter or digit and hold only letters, digits, ., _ or -, and it cannot collide with another registered project.
• Remove unregisters the project. By default your files on disk are left alone and only the manifest row goes; tick Also delete the folder on disk in the confirmation to erase it too. Deleting the folder is refused if it has no project block in config.json, which stops a stale path from wiping something unrelated.
• A running project must be stopped before it can be removed.

Licensing, in one line

The open-source build is AGPL-3.0 and complete — historian, alarms and recipes are all in the box, with no licence key, no feature unlock and no runtime check anywhere in the code. What you author in these folders is yours. See Licence.
