Screens from real projects, not a slide deck.

Each project here is a complete project you open in your own install: every page, alarm, recipe and translation, exactly as it was built. No logos, no case-study copy.

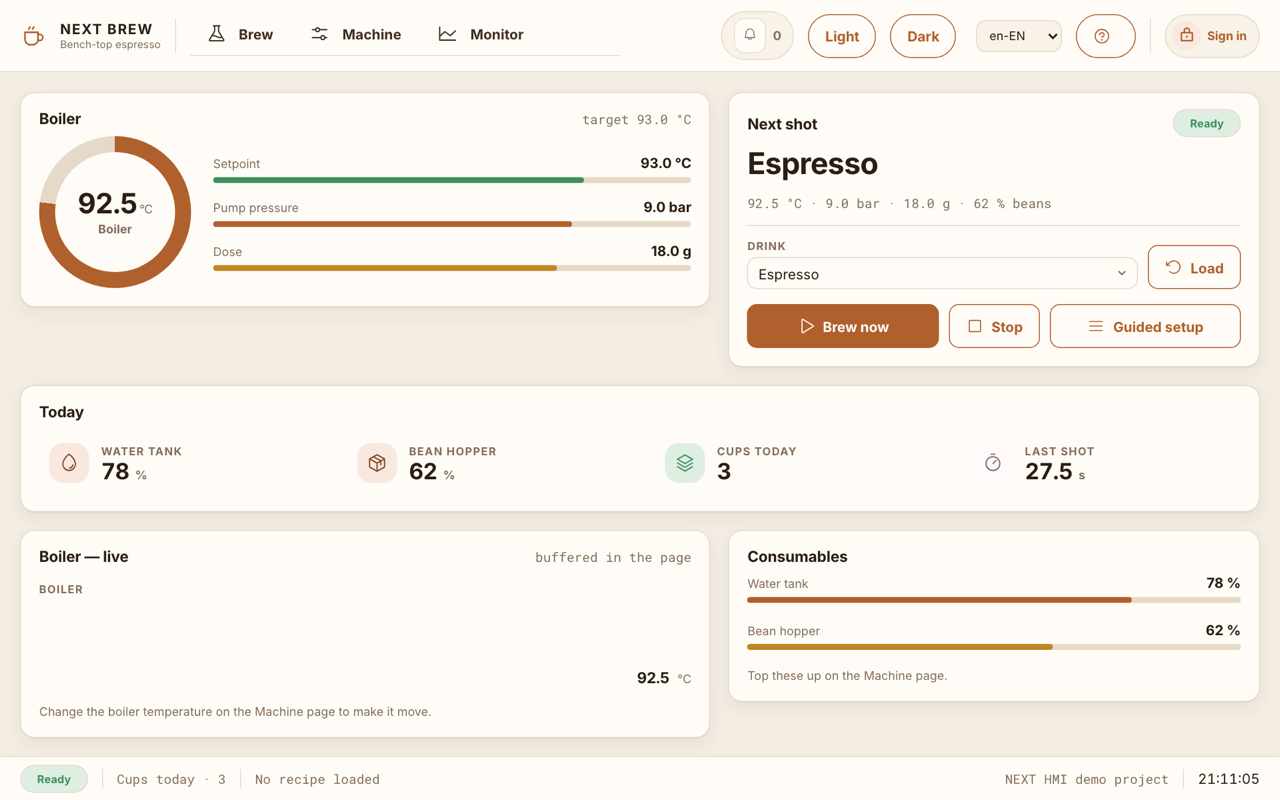

  • The Brew page of the NEXT BREW demo in the runtime: a boiler gauge at 92.5 °C with setpoint, pump pressure and dose bars, the next shot set to Espresso with Brew now, Stop and Guided setup buttons, today's water tank, bean hopper, cup count and last shot time, and a consumables card.
    Available now

    NEXT BREW: espresso machine

    A complete operator interface for one bench-top machine: brew, watch boiler and pump, clear alarms, switch recipes. Runs without a PLC.

    Bundled with every release, nothing to download. In the Manager, click + New project and pick the NEXT BREW example template.

    See what's inside Take the tour
  • The checkweigher's run screen on an 800 × 550 panel: the last case came out 34 g under target and is flagged Too low, beside a tolerance bar, a check-result list and the line's Running state.
    Available now · Packaging / OEM

    Checkweigher: product scale

    A complete panel for an inline checkweigher on an 800 × 550 touch screen: live weight, statistics, a recipe queue, setup behind an ADMIN PIN, English and Dutch. A fault simulator is built in.

    Download the zip and import it in NEXT HMI 1.1.0 or later. MIT-0: copy it into your own machine.

    See what's inside Download .zip
  • Packaging line

    Packaging line: overview & alarms

    A full line overview with alarms and trends. Of the three, this domain has the most ground to cover.

Want to hear when the packaging line lands? The release announcements cover new projects too.

Not a slide deck

Open a real project yourself.
